FIVE-FOUR is available in two forms: the bare module and a complete kit.
The bare module is exactly what it sounds like: a FIVE-FOUR module with
a quick-start guide and link to this website. The complete kit includes
a FIVE-FOUR and guide, along with three 7"/17.8cm header wires to connect
it to a SBC or microcontroller, a full set of mounting hardware (screws,
nuts, spacers, and washers), and a motherboard reset switch for testing.
Scroll down for pictures!
FIVE-FOUR provides a rich feature set in a tiny package:
-
Broad 3.3-5.5VDC supply range
-
High-current power control – 4A nominal, 6A maximum – for
projects using 5-volt power.
-
Advanced power MOSFET load switch with low Ron (14mohms
typ.), low forward voltage drop (56mV typ. @ 4A), and quick-discharge
feature to rapidly disconnect power to the load when off.
-
Super-low-dropout regulator and flexible-supply-voltage microcontroller
on-board allows operation down to 3.3 volts
-
Low current drain – less than 2.5mA – when “off”
-
High-side power switching – grounds are unaffected
-
Hardware-agnostic design that can work with any SBC or microcontroller
that uses 3.3-volt logic
-
Smooth, bounce-free power switching with 5-second safety lockout to
prevent rapid on/off cycles.
-
Two main operating modes:
-
“Basic” mode – operates as a simple power switch for simpler
projects that don’t require circuit-interactive power management
-
“Advanced” mode for “smart” projects
-
“Advanced” mode features for interactive power control with projects
using microcontrollers or single-board computers (SBCs):
-
Power failure detection with automatic safe shutdown to prevent
filesystem corruption (Note: requires additional hardware)
-
Lag/crash detection with optional restart-on-crash
-
Bidirectional signaled shutdown – the project’s SBC or microcontroller
can tell FIVE-FOUR to shut down, or vice versa
-
No SPI or I2C ports required from the project’s SBC or microcontroller,
freeing these up for project use
-
Requires three addressable I/O lines from the project’s SBC or
microcontroller, with free open-source interconnectivity software
available for SBCs that run Linux distributions
-
Individual features can be disabled on a per-feature basis
-
2.5A USB input and output connectors for easy implementation with SBCs
that use USB power cabling – just plug the SBC’s supply into the micro
USB input and use a charging cable to connect FIVE-FOUR to the SBC’s
USB power connector
-
Full-current (6A) screw terminals for direct wire connection
-
Only requires a small, low-current momentary pushbutton switch for
operation, e.g., a motherboard reset switch
-
Supports add-on circuits for switching – use a capacitive touch sensor,
for example, instead of a momentary pushbutton switch.
-
Automatic start/restart capability for projects that require maximum uptime
-
Vibrant status LED with multiple flash patterns to indicate FIVE-FOUR’s
state, which can be disabled by removing a jumper
-
Header for optional off-board status LED
-
Simple jumper-controlled configuration – no special programmers or tooling required
-
Compact design – 1.25”/31.75mm x 1.55”/39.4mm – designed to fit vertically
within a 1-unit rackmount enclosure
-
Built with only standards-compliant components to meet international
environmental-impact requirements such as RoHS and REACH.
FIVE-FOUR Quick-Start Guide
Image coming soon!
FIVE-FOUR Picture Gallery

FIVE-FOUR is very compact, less than 40mm wide and long.

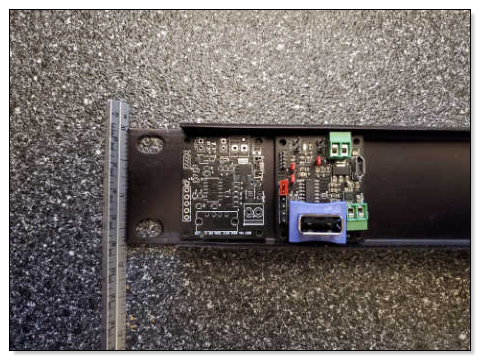

FIVE-FOUR can fit vertically within a 1U rackmount enclosure. Add smart
power control to rackmount projects!

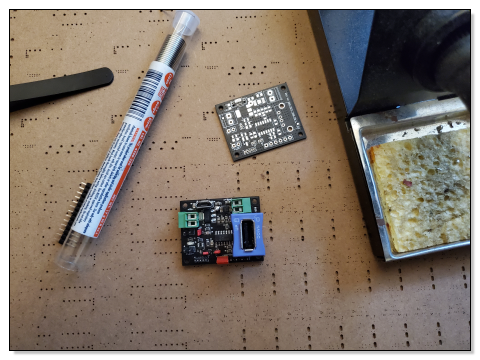

Before and after populating the circuit board.

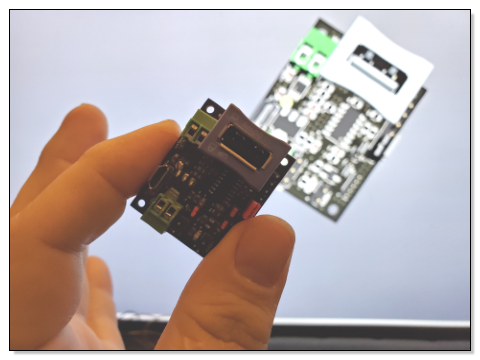

FIVE-FOUR prototype compared with the 3D render of the prototype design.
